Pneumatic Actuator Sizing: How to Calculate the Required Torque

Content

1 Quick Answer: The Core Formula for Pneumatic Actuator Torque Sizing
2 Break Torque, Running Torque, and Seating Torque Explained
3 Step by Step: How to Calculate Required Actuator Torque
- 3.1 The Calculation Workflow
- 3.2 Worked Example, Illustrative Only
4 Key Factors That Change Required Valve Torque
- 4.1 Valve Related Factors
- 4.2 Application Related Factors
5 Choosing the Right Safety Factor for Actuator Sizing
- 5.1 Typical Safety Factor Range by Service Condition
6 Torque Demand Comparison Across Common Valve Types
- 6.1 Relative Torque Demand by Valve Type
7 How Air Supply Pressure Affects Pneumatic Actuator Output Torque
- 7.1 Typical Output Torque Trend vs Air Supply Pressure
8 Comparing Rack and Pinion, Scotch Yoke, and Vane Actuators
9 When Valve Gearboxes Are Needed With Pneumatic Actuators
10 Butterfly Valve Hand Lever: Manual Control and Backup Operation
11 Actuator, Gearbox, and Valve Assembly Overview
12 Common Pneumatic Actuator Sizing Mistakes to Avoid
13 Sourcing Pneumatic Actuators and Valve Gearboxes for Industrial Projects
14 Frequently Asked Questions

Quick Answer: The Core Formula for Pneumatic Actuator Torque Sizing

The short answer is straightforward. Required actuator output torque should be equal to or greater than the valve maximum torque multiplied by an appropriate safety factor, checked at the minimum expected air supply pressure. Written out, this becomes Actuator Output Torque at minimum supply pressure should be greater than or equal to Valve Maximum Torque multiplied by Safety Factor. Most quarter turn valves such as butterfly, ball, and plug valves publish a maximum torque figure on their manufacturer torque chart, and that figure already reflects break to open friction, mid stroke running friction, and end of stroke seating load.

Once the valve maximum torque figure is known, teams working with Pneumatic Actuators apply a safety factor suited to the service condition, then select an actuator model whose rated output at the lowest anticipated instrument air pressure still clears that target number. The sections below walk through this process step by step, cover how safety factor selection shifts with service condition, explain how valve gearboxes extend actuator capability on larger valves, and show where a manual butterfly valve hand lever fits into an overall control philosophy.

Break Torque, Running Torque, and Seating Torque Explained

Every quarter turn valve passes through three distinct torque phases across its ninety degree travel, and a calculation that only accounts for one of them can leave an actuator undersized once it reaches the field.

Break to Open Torque

This is usually the highest point on the entire torque curve. It occurs the instant the valve begins to move away from a fully seated position, when seat friction is at its peak and static friction has not yet transitioned into dynamic friction. Resilient seated butterfly valves and soft seated ball valves are particularly sensitive to this peak, especially after long idle periods between cycles.

Running Torque

Once the disc, ball, or plug starts rotating, friction drops from static to dynamic, and the torque needed to keep the element moving through the middle of its travel is generally lower than break to open torque. Running torque is the number most people picture when they think about a valve in motion, but sizing an actuator against running torque alone is a common mistake covered later in this guide.

End of Travel Seating Torque

As the valve approaches full open or full closed, torque climbs again while the sealing element compresses into its final seated position. On tight shutoff duty this seating torque can approach or exceed the break to open figure, which is one reason manufacturer torque charts typically report a single maximum value covering the highest of these three points.

General shape of a quarter turn valve torque curve across a ninety degree stroke.
Stroke Position	Torque Phase	Relative Torque Level
0 degrees	Break to open	High
10 to 20 degrees	Transition	Moderate
30 to 60 degrees	Running	Low
80 to 90 degrees	Seating	High

Step by Step: How to Calculate Required Actuator Torque

The Calculation Workflow

Obtain the maximum torque value for the exact valve size, pressure class, and seat material from the valve manufacturer torque chart, matched to the specific media and operating condition involved.
Select a safety factor suited to the service condition, weighing how often the valve cycles, how clean the media is, and whether the duty is tight shutoff or throttling.
Multiply the valve maximum torque by the chosen safety factor to set the target actuator output torque.
Compare that target figure against actuator torque tables at the minimum air supply pressure the system can realistically deliver, not the nominal or peak plant pressure, since long air runs, filters, regulators, and simultaneous demand from other equipment can all reduce pressure available at the actuator.
For spring return actuators, confirm the spring alone can still drive the valve to its fail safe position across the full ninety degree stroke, not only near the very end of travel where spring force is typically strongest.
Verify that the mounting bracket, drive bushing, and stem coupling dimensions match the valve, since a loose or mismatched interface introduces backlash and parasitic torque that will not show up on any torque chart.

Worked Example, Illustrative Only

The numbers below are round figures used purely to walk through the calculation sequence. They are not a specification for any particular valve or actuator model and should not be applied directly to a real project without checking manufacturer torque tables.

Illustrative torque sizing sequence; actual figures depend on the specific valve, actuator model, and project conditions.
Step	Value
Valve maximum torque	150 Nm
Selected safety factor	1.3
Target actuator output torque	195 Nm
Minimum expected supply pressure	4.5 bar, about 65 psi
Selection rule	Choose the smallest model rated at or above 195 Nm at 4.5 bar

Key Factors That Change Required Valve Torque

Two valves with the same nominal size can call for noticeably different actuator torque once real operating conditions are considered. It helps to separate the variables into valve related factors and application related factors.

Valve Related Factors

Seat design and material, since resilient soft seats typically create higher seating torque than metal seated designs
Valve size, because torque generally increases with nominal diameter as seat contact area grows
Differential pressure across the valve, particularly for ball and plug valves where pressure pushes the sealing element harder against its seat
Disc or ball surface finish and seat wear that develops over the service life of the valve

Application Related Factors

Media type, since viscous, abrasive, or slurry laden fluids raise running torque and accelerate wear
Temperature, because elevated heat can soften seals while cold conditions can stiffen elastomers and raise break to open torque
Cycling frequency, since valves left idle for long periods can develop higher breakaway torque as the seat relaxes into a fixed position
Mounting alignment and stem coupling tolerance, where a loose or misaligned coupling adds parasitic friction that never appears on a valve torque chart

Choosing the Right Safety Factor for Actuator Sizing

A safety factor exists to cover the gap between a valve torque chart produced under controlled test conditions and the real friction, wear, and seat behavior a valve experiences after months or years in service. Picking a safety factor that is too low risks a stalled actuator that cannot complete its stroke; picking one that is unnecessarily high leads to a larger, heavier actuator than the application calls for.

Many valve automation projects use safety factor ranges similar to the following as a starting reference point, then adjust based on the specific valve manufacturer data and the severity of the service.

General reference ranges for safety factor selection; always confirm against valve and actuator manufacturer torque data for the actual project.
Service Condition	Typical Safety Factor Range
Clean media, frequent cycling, standard duty	1.25 to 1.30
Infrequent cycling or long idle periods	1.30 to 1.40
Dirty, abrasive, or viscous media	1.40 to 1.50
High differential pressure or emergency shutdown duty	1.50 and above

Typical Safety Factor Range by Service Condition

Illustrative safety factor guidance by service condition; final selection should always be checked against project specific torque data.

Torque Demand Comparison Across Common Valve Types

Seat contact area is one of the biggest drivers of torque difference between valve types. A butterfly valve disc contacts its seat along a relatively narrow band, which is one reason butterfly valves are widely used with compact Pneumatic Actuators across general plant automation. Ball valves, especially full port trunnion mounted designs, press a much larger sealing surface against the seat, and plug valves typically present the largest seat contact area of the group, which is why plug valve applications often need a proportionally larger actuator for a comparable line size.

Relative Torque Demand by Valve Type

Illustrative relative comparison using butterfly valve as the baseline; actual torque depends on size, pressure class, and manufacturer design.

How Air Supply Pressure Affects Pneumatic Actuator Output Torque

A pneumatic actuator generates torque by letting supply air act on a piston or vane area, then converting that linear or rotary force into shaft torque through a rack and pinion, scotch yoke, or vane mechanism. Because output force scales with supply pressure, output torque rises as supply pressure increases and falls if supply pressure sags below the design point.

This relationship is the reason actuator sizing should always be checked against the minimum air pressure the system can realistically deliver at the actuator, rather than the nominal plant supply figure. Long instrument air runs, undersized tubing, filter and regulator pressure drop, and periods of high simultaneous air demand elsewhere in the plant can all reduce pressure at the actuator below the value shown on a plant drawing. For spring return actuators, the same logic applies in reverse on the spring stroke, where usable pneumatic torque must still overcome both the valve torque and the spring pre load acting against it.

Typical Output Torque Trend vs Air Supply Pressure

Illustrative simplified trend of actuator output torque relative to supply pressure for a fixed bore size.

Comparing Rack and Pinion, Scotch Yoke, and Vane Actuators

Rack and Pinion Actuators

Compact and widely used for small to medium torque requirements, rack and pinion units are a common choice of industrial pneumatic actuator for general plant automation of butterfly and ball valves. Output torque is close to constant across the stroke, which keeps sizing calculations relatively simple.

Scotch Yoke Actuators

Better suited to larger valve sizes and higher torque requirements, scotch yoke units produce a non linear torque output shaped by the yoke geometry. Canted yoke designs can be tailored to roughly track the valve's own torque curve, delivering more available torque margin exactly where the valve needs it most, near breakaway and near seating.

Vane Actuators

Vane type units convert air pressure directly into rotary motion without an internal rack and pinion or yoke mechanism, giving a very compact envelope for the torque delivered. They are often selected where mounting space around the valve is limited.

Actuator Type Comparison, Illustrative Scoring

Illustrative relative scoring for general reference only; actual performance varies by manufacturer and model.

When Valve Gearboxes Are Needed With Pneumatic Actuators

For larger valve sizes or higher pressure classes, required torque can exceed what a reasonably sized pneumatic actuator can economically or physically deliver on its own. In these cases, valve gearboxes are fitted between the actuator and the valve stem to provide mechanical advantage, multiplying the actuator output torque through a gear reduction, commonly a worm gear or bevel gear reduction unit, before it reaches the valve stem.

This arrangement lets a smaller, more compact pneumatic actuator operate a much larger valve than it could drive directly. Valve gearboxes also act as a mechanical stop that controls the ninety degree open and close travel precisely, protecting both the actuator and the valve seat from over travel damage. In many automation packages, valve gearboxes are also fitted with a manual override input shaft, so the valve can still be positioned by hand during maintenance, actuator servicing, or a temporary loss of air supply, without removing the pneumatic actuator from the assembly.

Because valve gearboxes trade speed for torque, stroke time on a geared assembly is typically somewhat longer than on a direct mounted actuator of similar air consumption, which is generally an acceptable trade off on large valve automation projects. Matching the right gearbox ratio to the right actuator model is a recurring task for engineers automating large diameter butterfly and ball valves across water treatment, power generation, and industrial process piping systems, and working with an experienced valve gearbox manufacturer or valve gearbox supplier can help align reduction ratios with project specific torque requirements.

Butterfly Valve Hand Lever: Manual Control and Backup Operation

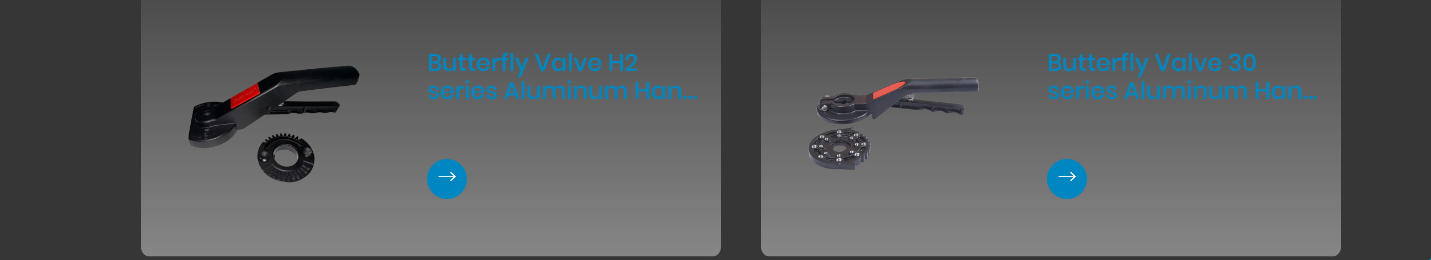

Many small and medium sized butterfly valves are fitted with a Butterfly Valve Hand Lever instead of, or alongside, a pneumatic actuator, particularly where the application does not call for full automation or where a local manual override is wanted next to a remotely controlled unit. A butterfly valve hand lever provides direct manual rotation of the valve stem through the ninety degree stroke, typically paired with a notched position plate that lets an operator lock the valve at open, closed, or several intermediate throttling positions.

On automated assemblies, some plant designs pair a pneumatic actuator for normal remote operation with a separate hand lever, or a gearbox fitted with a lever override, reserved for maintenance access, air supply interruptions, or commissioning, so valve position can still be confirmed and adjusted locally even when the pneumatic supply is isolated. Selecting the right lever length matters almost as much as actuator torque selection itself, since a lever that is too short forces the operator to apply excessive hand force to overcome break to open torque, while a longer lever gives better mechanical advantage at the cost of a larger footprint near the valve.

Actuator, Gearbox, and Valve Assembly Overview

The illustration below shows, in simplified isometric form, how a pneumatic actuator, a valve gearbox, and a manual hand lever typically relate to a butterfly valve body in a geared automation package.

Simplified isometric illustration; exact component arrangement varies by valve size and project design.

Common Pneumatic Actuator Sizing Mistakes to Avoid

Sizing against nominal plant air pressure instead of the minimum pressure the actuator will actually see
Checking running torque only and overlooking the higher break to open or seating torque values
Assuming a spring return actuator has enough spring torque at every point in the stroke, rather than checking the full travel
Applying one generic safety factor to every valve regardless of media condition or cycling frequency
Overlooking mounting bracket, drive bushing, or stem coupling tolerances that add parasitic friction
Forcing an oversized actuator onto a large valve instead of evaluating valve gearboxes for mechanical advantage
Ignoring how cold weather or long idle periods between cycles can raise break to open torque over time

Sourcing Pneumatic Actuators and Valve Gearboxes for Industrial Projects

Teams researching a pneumatic actuator manufacturer or a pneumatic actuator supplier for a new automation package are usually weighing more than torque tables alone. Component consistency, machining precision, and assembly quality all influence how closely a finished actuator matches its published torque figures in the field, which is part of why the manufacturing background behind a pneumatic actuator factory or a pneumatic valve actuator manufacturer is worth understanding before a project is finalized.

Ningbo Hawks Auto Parts Co., Ltd. was founded in 2004 and is based in Ningbo, within China's industrial manufacturing region. The company works across research and development, precision casting, machining, and assembly of aluminum alloy components, serving sectors that include industrial automation, energy control, fluid systems, marine equipment, and general machinery. With two decades of engineering experience and a globally oriented outlook, Hawks operates as a fully integrated manufacturer offering end to end support from concept design through final assembly, relevant to teams evaluating an industrial pneumatic actuator program or comparing a valve gearbox manufacturer and valve gearbox supplier for a combined actuator and gearbox package alongside components such as a Butterfly Valve Hand Lever.

Frequently Asked Questions

Common questions about pneumatic actuators and their sizing.
Q1: What is a pneumatic actuator A pneumatic actuator is a mechanical device that converts compressed air pressure into linear or rotary motion, used to open, close, or throttle a valve.	Q2: How does a pneumatic actuator work Compressed air enters the actuator body and acts on a piston, vane, or diaphragm, and that force is converted into shaft rotation or linear travel that moves the valve.
Q3: What are pneumatic actuators used for They are used to automate the opening, closing, and throttling of valves in industrial piping systems, including water treatment, energy, marine, and general process automation.	Q4: What are the different types of pneumatic actuators Common categories include rack and pinion, scotch yoke, and vane rotary actuators, along with linear cylinder actuators for gate and globe style valves.
Q5: What is a rotary pneumatic actuator A rotary pneumatic actuator produces a turning motion, typically across a ninety degree stroke, used to operate quarter turn valves such as butterfly, ball, and plug valves.	Q6: What is a quarter turn pneumatic actuator This describes a rotary actuator built to move a valve through a ninety degree arc between fully open and fully closed positions.
Q7: What is a double acting pneumatic actuator A double acting actuator uses air pressure to drive the valve in both the opening and closing directions, with no internal spring for fail safe action.	Q8: What is a spring return pneumatic actuator A spring return actuator uses air pressure to drive the valve in one direction and an internal spring to return it to a fail safe position if air supply is lost.
Q9: How do I know what torque I need for my valve Start with the valve manufacturer maximum torque figure for your exact size and pressure class, then apply a safety factor suited to your service condition before comparing against actuator torque tables.	Q10: What safety factor should I use when sizing an actuator Many standard duty applications use a safety factor in the 1.25 to 1.3 range, rising toward 1.5 or higher for dirty media, infrequent cycling, or high differential pressure service.
